Transfer used gear hobbing mahine

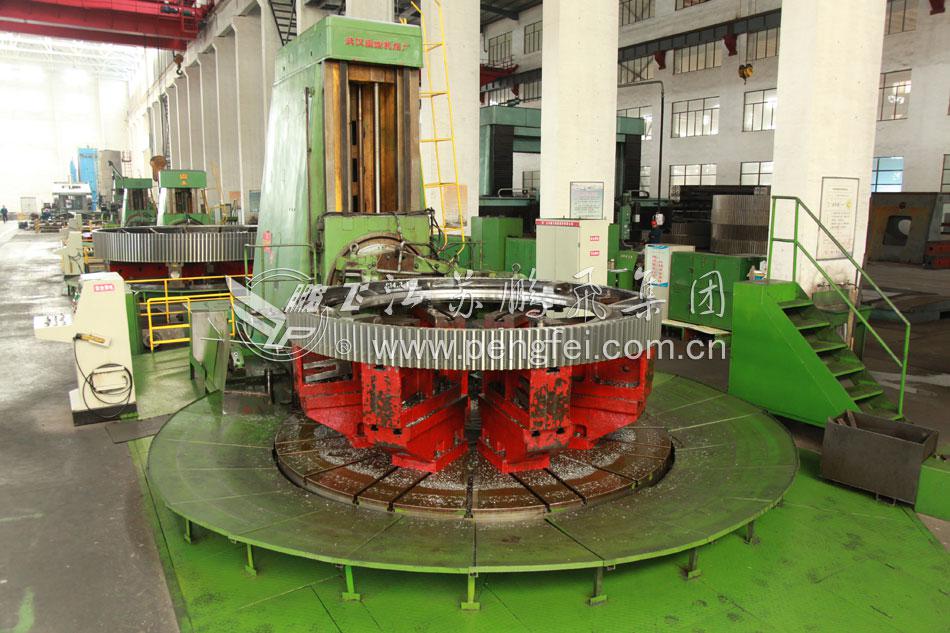

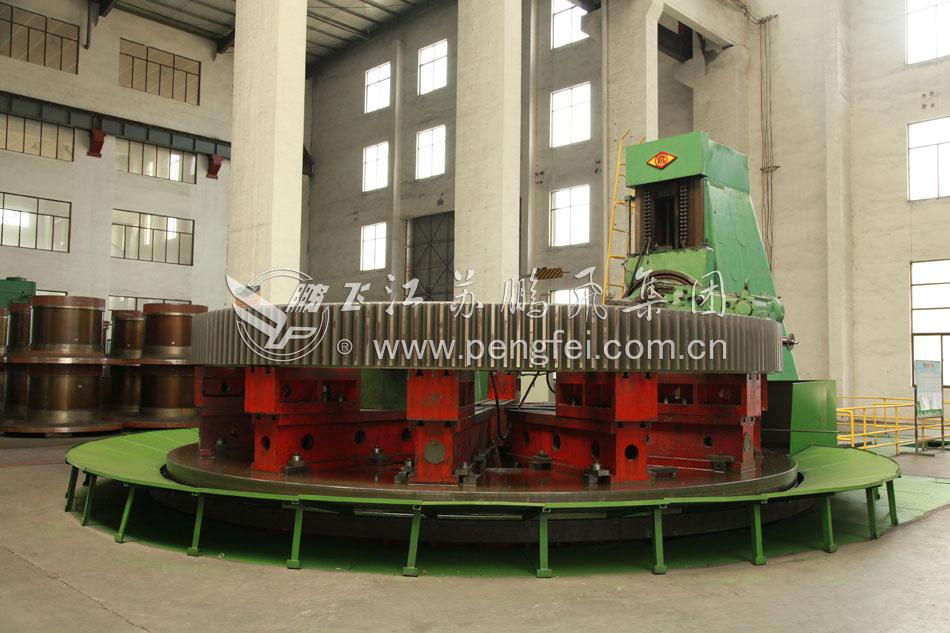

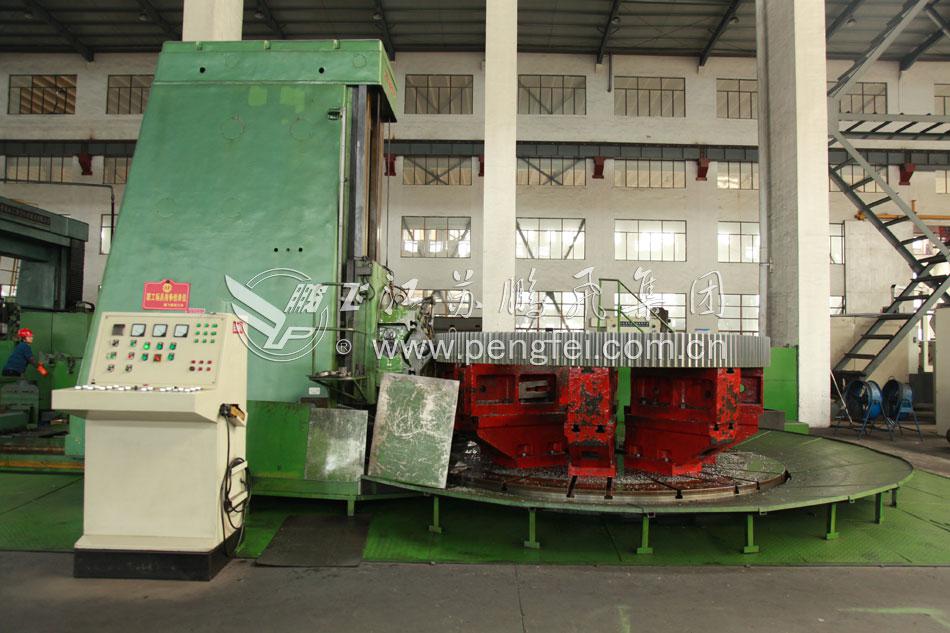

Jiangsu Pengfei Group has two used gear hobbing machines which can be transferred. Please check following technical parameter. These two hobbing machines were installed in workshop right now and they are operated in normal condition. Now we find local and overseas buyers. If you are interest in our hobbing machine, please contact us.
Contact person: Mr. Wang 13606276076
Technical parameter for Y31500A gear hobbing machine (1)
| S/N | Name | Parameter | Remark |
| 1 | Diameter of working table | 3700mm | |
| 2 | Max machining diameter | 5000mm | |
| 3 | Max machining mudule | 30mm | |
| 4 | Machining height | 1500mm | |
| 5 | Max loading | 30t | |
| 6 | Main motor | 30kw（DC） | |
| 7 | Vertical pillar quick motor | 11kw（DC） | |
| 8 | Motor for hydraulic station | 6.7kw | |
| 9 | Overall dimension of lathe | 12m*4m*5m | L*W*H |
| 10 | Total weight of lathe | About 130tons | |
| 11 | Origin | Wuhan Heavy lathe factory | |
| 12 | Origin production time | October, 1993 |
Technical parameter for Y311000 gear hobbing machine（Two）
| S/N | Name | Parameter | Remark |
| 1 | Diameter of working table | 7000mm | |
| 2 | Max machining diameter | 10000mm | |
| 3 | Max machining mudule | 40mm | |
| 4 | Machining height | 1800mm | |
| 5 | Max loading | 60t | |
| 6 | Main motor | 30kw（DC） | |
| 7 | Vertical pillar quick motor | 11kw（DC） | |
| 8 | Indexing motor | 3kw | |
| 9 | Motor for hydraulic station | 7.4kw | |
| 10 | Overall dimension of lathe | 16m*8m*6m | L*W*H |
| 11 | Total weight of lathe | About 196t | |
| 12 | Origin | Russia |
